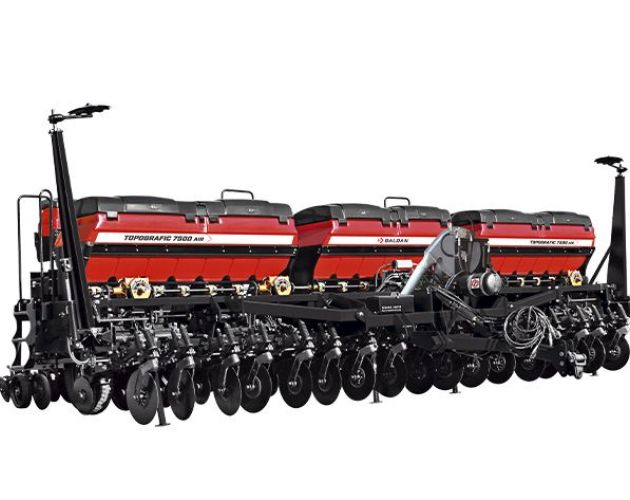

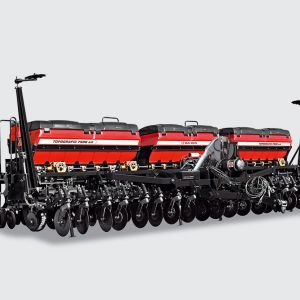

TOPOGRAFIC AIR Precision Row Crop Planter

Precision Row Crop Planter

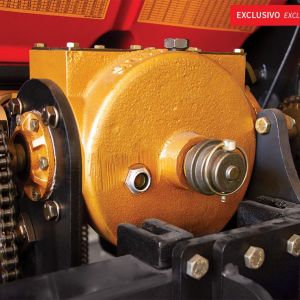

Developed to work with great fertilizer and seed autonomy. All fertilizer and seed adjustments are made through the Speed Box system. The technology embedded in the seed tank offers greater
accuracy in the soil and versatility in dosing seed quantities per linear meter.

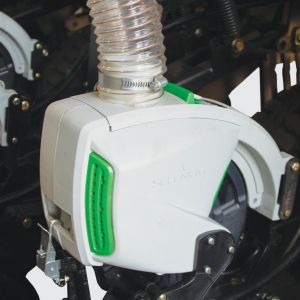

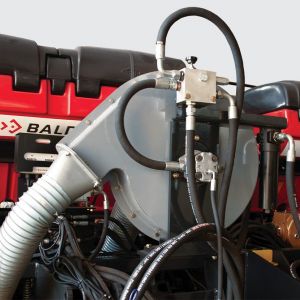

Dispensing is provided by pneumatic dosers, dispensing different types of seeds in a rotating air chamber.



Technical Specifications

Model Nr of
Rows		 Nr. of wheels Ground Wheels Sees Hooper
(L)		 Fertilizer Hopper
(L)		 Aprox. Weight
(kg)		 Total Width
(mm)		 Useful Width
(mm)		 Working Width
(mm)		 Tractor Power
(hp)
4500 11 4 Militar 700 x 16 x 10 lonas 715 1650 7115 5300 4500 4950 120-140
5500 13 6 Militar 700 x 16 x 10 lonas 845 1860 8409 6400 5400 5850 140-160
6500 15 6 Militar 700 x 16 x 10 lonas 975 2160 8793 7100 6300 6750 160-200
7500 17 8 Militar 700 x 16 x 10 lonas 1105 2610 9965 8400 7200 7650 175-215
8500 19 8 Militar 700 x 16 x 10 lonas 1235 2920 10750 8900 8100 8550 200-240

(*) Approximate Power (hp) depends on normal situations for planting may be variations according to the soil type, topography, etc.Tabelas de Espaçamentos

Model Nr of
Rows		 Spacing (mm)
4500  11 450
10 500



Model Nr of
Rows		 Spacing (mm)
5500  13 450
12 500



Model Nr of
Rows		 Spacing (mm)
6500  15 450
14 500



Model Nr of
Rows		 Spacing (mm)
8500 19 450
17 500
