SPDE - Semoir Semis Direct Spécial - Baldan Máquinas e Implementos Agrícolas

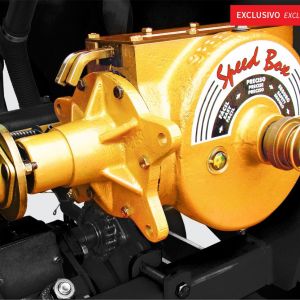

It has an exclusive 62-speed Speed Box gearbox, dispensing seeds by grooved rotor, articulated swivel, great amplitude to work on paddy fields (rice), pivoted lines and iron compactor, centralized lubrication.

Technical Specifications

Model	Nr Of Rows	Fertilizer Hooper	Seed Hooper	Small Seed Hooper	Estimated Weight	Useful Width	Working Width	Total Width	Tractor Required
		L	L	L	Kg	mm	mm	mm	Hp*

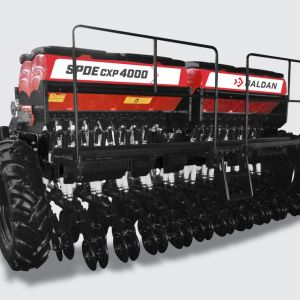

SPDE CXP 3000	16	660	564	64	3431	2550	2720	3592	75 - 95
SPDE CXP 4000	20	810	700	72	3830	3230	3400	4272	95 - 110

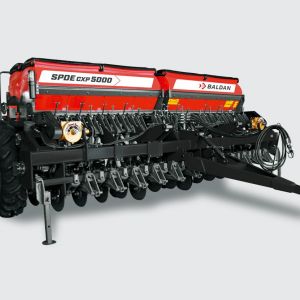

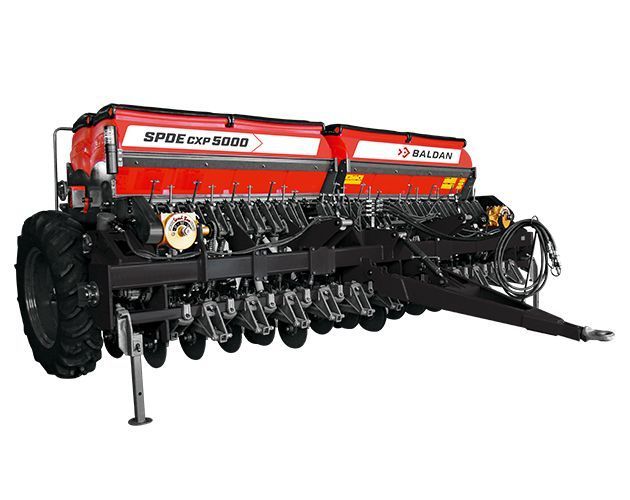

SPDE CXP 5000	24	972	836	88	4250	3910	4080	4952	115 - 130
SPDE 3000	16	641	469	64	3401	2550	2720	3592	75 - 95

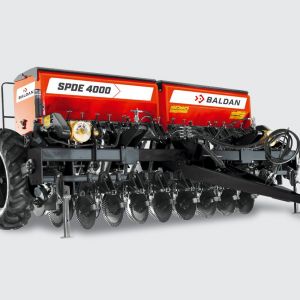

SPDE 4000	20	764	558	72	3812	3230	3400	4272	95 - 110
SPDE 5000	24	914	670	88	4223	3910	4080	4952	115 - 130

Minimum Row Spacing	Total Lenght	Clearance	Working Depth	Amount of Water in the Tyres
mm	mm	mm	mm	L
170	3600	1850	0 – 120

(*) Approximate Power (hp) depends on normal situations for planting may be variations according to the soil type, topography, etc.

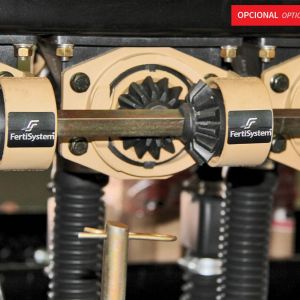

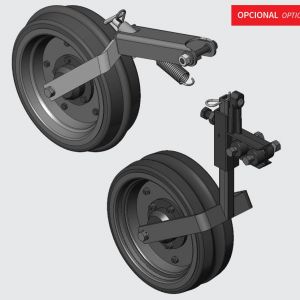

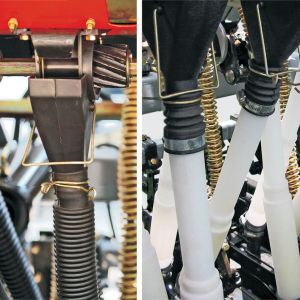

Standard: Plastic hopper. Rugged coulter blade. Unaligned double disc. “V” shaped compression wheel. Gear box speed box with 62 settings for fertilizer calibration. Rear catwalk with individual seed hose. Angled roller for seed metering and extra-weight.

Row Spacings

Model	Nr. Of Rows	Spacing	Useful Width
		mm	mm
3000	3	1455	2910
	4	970	2910
	5	727	2910
	8	415	2910
	9	363	2910
	12	264	2910
	16	170	2910

Model	Nr. Of Rows	Spacing	Useful Width
		mm	mm
4000	4	1196	3590
	5	897	3590
	7	598	3590
	10	398	3590
	14	276	3590
	17	225	3590
	20	170	3590

Model	Nr. Of Rows	Spacing	Useful Width
		mm	mm
5000	4	1423	4270
	5	1067	4270
	6	854	4270
	7	712	4270
	9	534	4270
	12	388	4270
	13	356	4270
	15	305	4270
	17	267	4270
	24	170	4270
