Developed for planting winter crops such as wheat, oats, barley and others.

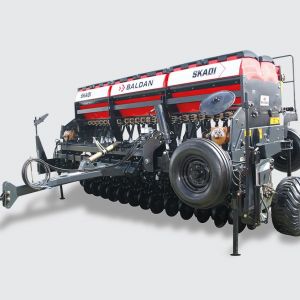

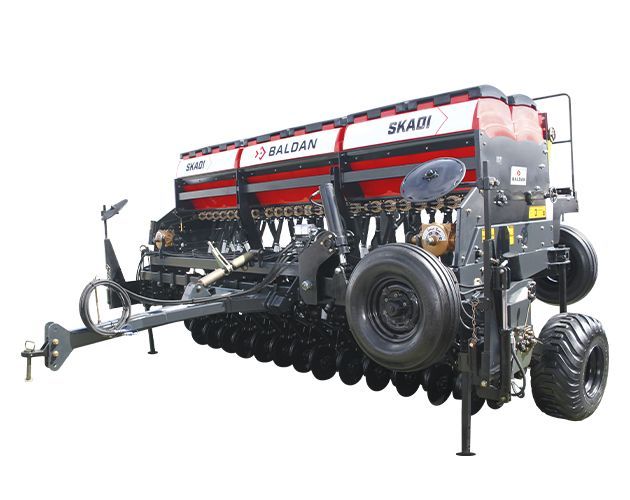

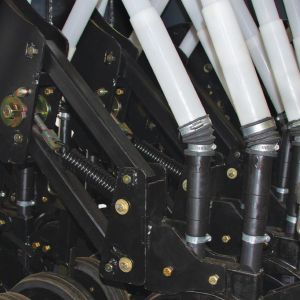

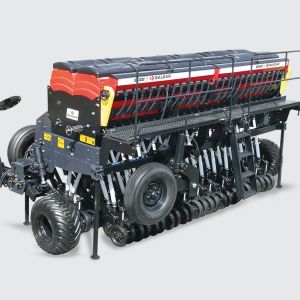

SKADI model available with 25, 29 or 33 rows at 170 mm spacing row, an exclusive system of pantographic rows, which provides excellent performance in the most varied types of terrain, with minimal removal and reduced maintenance.

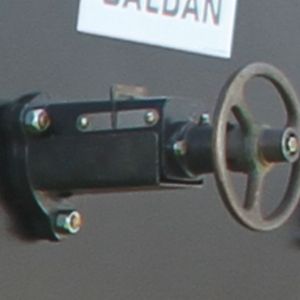

All adjustments are made using the SPEED BOX system, which does not require the use of tools and has 62 different combinations.
| Model | Nr Of Rows | Useful Width | Working Width | Total Height | Tractor Power |
| mm | mm | mm | Hp* | ||
| 5000 | 25 | 4080 | 4250 | 2841 | 125 - 150 |
| 6000 | 29 | 4760 | 4930 | 2841 | 145 - 180 |
| 7000 | 33 | 5440 | 5610 | 2841 | 165 - 200 |

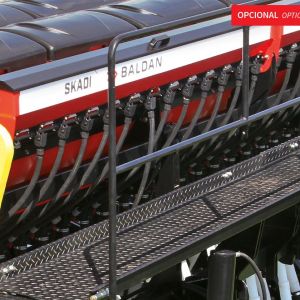

| Model | Minimum Row Spacing | Fertilizer Hooper Capacity | Seed Hooper Capacity | Small Seed Hooper Capacity |
| L | L | L | ||
| 5000 | 170 | 1470 | 1470 | 104 |
| 6000 | 170 | 1680 | 1680 | 118 |
| 7000 | 170 | 1860 | 1860 | 136 |
| Estimated Weight | ||
| Model | No: Line Marker / Small Seed Hooper / Lateral Transport | With: Marker Line / Small Seed Hooper / Lateral Transport |
| KG | KG | |
| 5000 | 5570 | 6400 |
| 6000 | 5875 | 6760 |
| 7000 | 6930 | 7870 |
(*) Approximate Power (hp) depends on normal situations for planting may be variations according to the soil type, topography, etc.

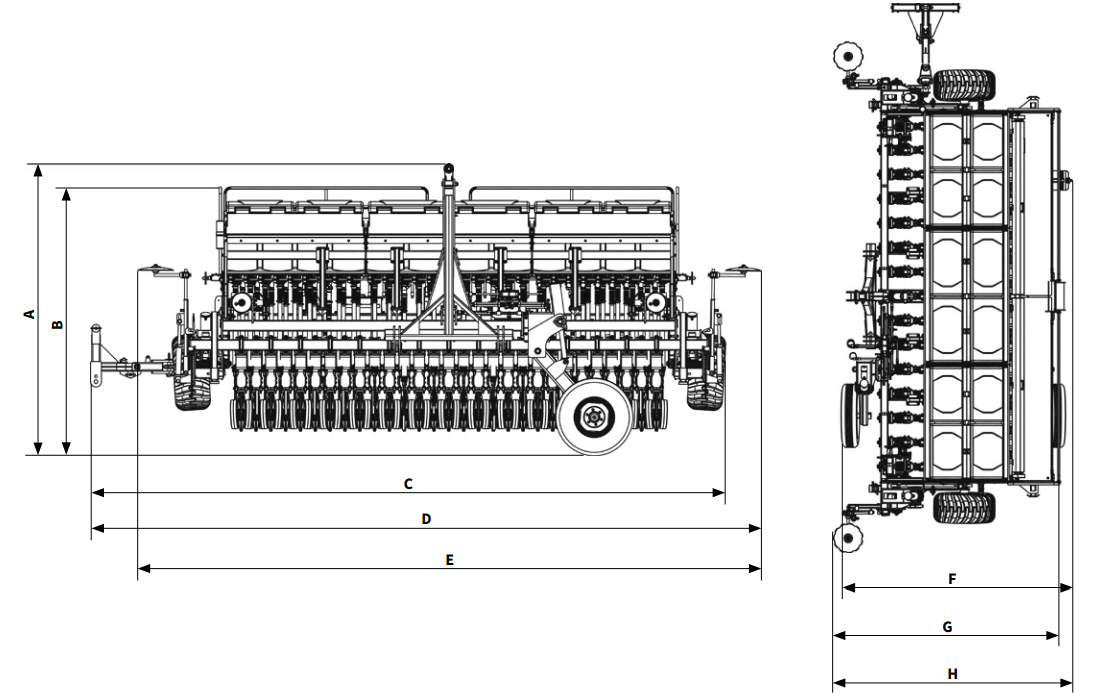

| Model | Nr Of Rows | Measurement: A | Measurement: B | Measurement: C | Measurement: D | Measurement: E | Measurement: F | Measurement: G | Measurement: H |
| mm | mm | mm | mm | mm | mm | mm | mm | ||
| 5000 | 25 | 3430 | 3170 | 6665 | 7075 | 6550 | 3150 | 3015 | 3160 |
| 6000 | 29 | 3430 | 3170 | 7315 | 7730 | 7205 | 3150 | 3015 | 3160 |
| 7000 | 33 | 3560 | 3295 | 8375 | 8570 | 7830 | 3515 | 3015 | 3160 |
