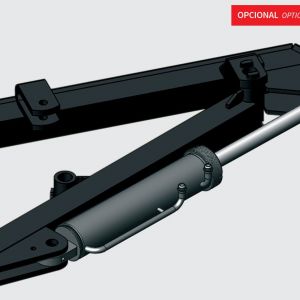

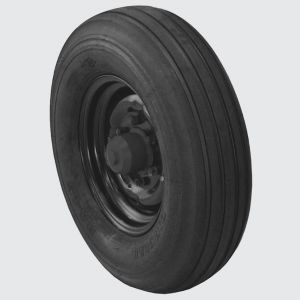

Used for soil preparation and drainage work, it has pistons for opening and closing the sections and tires in the GRP model, which help in transporting from one area to another.
| Model | NR of Discs | Working Width (mm) | Approz. weight (Kg) |
Tractor Power (Hp) |
||
|---|---|---|---|---|---|---|
| 24'' | 26'' | 28" | ||||
| GR | 10 | 1050 | 765 | 780 | 830 | 48 - 61 |
| GR | 12 | 1300 | 790 | 815 | 1100 | 57 - 66 |
| GR | 14 | 1550 | 855 | 880 | 1200 | 67 - 77 |
| GR | 16 | 1750 | 985 | 1020 | 1300 | 76 - 88 |
| GR | 18 | 2000 | 1185 | 1220 | 1500 | 86 - 99 |
| GR | 20 | 2250 | 1250 | 1290 | 1700 | 96 - 110 |
| GR | 24 | 2700 | 1390 | 1430 | 1800 | 115 - 132 |
| GR | 28 | 3200 | 1910 | 1970 | 1870 | 135 - 154 |
| GRP | 12 | 1300 | 980 | 1020 | 1100 | 57 - 66 |
| GRP | 14 | 1550 | 1060 | 1090 | 1260 | 67 - 77 |
| GRP | 16 | 1750 | 1160 | 1200 | 1300 | 76 - 88 |
| GRP | 18 | 2000 | 1410 | 1450 | 1500 | 86 - 99 |
| GRP | 20 | 2250 | 1460 | 1500 | 1700 | 96 - 110 |
| GRP | 24 | 2700 | 1755 | 1810 | 1880 | 115 - 132 |
| Working Depth (mm) | 150 - 250 |
| Disc Diameter (Ø) | 24”- 26” - 28” |
| Axle Diameter (Ø) | 1.5/8” |
| Disc Spacing (mm) | 235mm |
| Wheels Set | Single |
