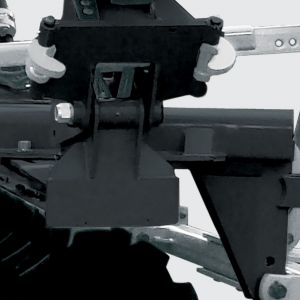

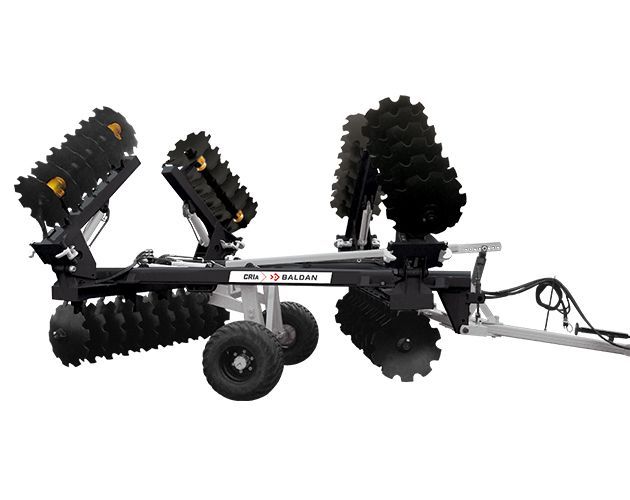

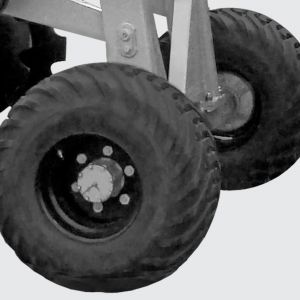

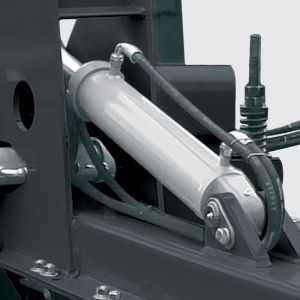

An equipment with tubular beams structure, produced with steel of the best quality and high resistance. Its wheels are attached to cylinders facilitate maneuvering operations, depth control and long distance transport make your work is unmistakable.
| Axle Diameter (ø) | 1.5/8" |
| Disc Spacing (mm) | 270 |
| Working Depth (mm) | 150 - 250 |
| Spherical Disc Blade (ø) / mm | 26" and 28" / 6,0 and 7,5 |
| Model | Nr of Discs |
Working Width (mm) |
Transport Width (mm) |
Approx. Weight 26" (Kg) |
Approx. Weight 28" (Kg) |
Tractor Power (Hp) |
| CRI-A | 40 | 5290 | 3405 | 5461 | 5554 | 240 - 260 |
| CRI-A | 44 | 5840 | 3405 | 5623 | 5791 | 264 - 280 |
| CRI-A | 48 | 6390 | 4237 | - | 6281 | 288 - 303 |
Veuillez cliquer sur le lien ci-dessous pour télécharger le fichier.
