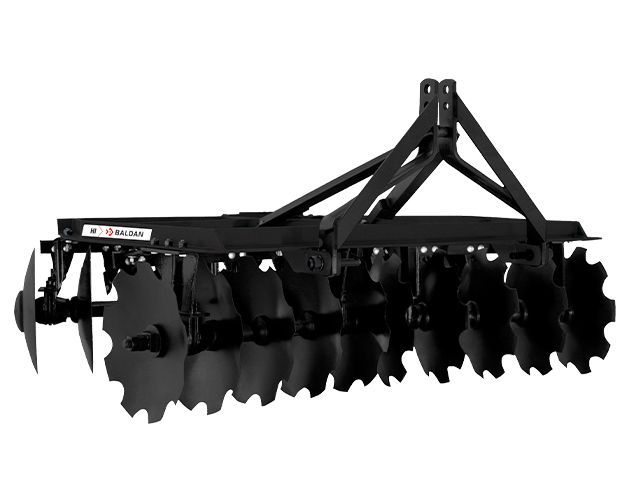

The BALDAN HI - Mounted Disc Harrow was developed especially for small areas that are difficult to maneuver and with steep slopes. It has reinforced chassis and several points of adjustments to ensure its quality and yield, ideal for lump breaking and disposal of seedlings.

Technical Specifications

Spacing Between Discs (mm) 185
Shaft Diameter (ø) 1"
Model Nr of
Discs
Disc
Diameter
(ø)
Working
Width
(mm)
Working
Depth
(mm)
Approx. Weight
(Kg)
Tractor
Power
(Hp)
16" 18" 20"
HI 10 16" - 18" - 20" 1800 50-150 184  195  207  25-35
HI 16 16" - 18" - 20" 1505 50-150 294 316  331 35-40
HI 20 16" - 18" - 20" 1875 50-150 328  344 388  44-48
HI 24 16" - 18" - 20" 2245 50-150 407 457  476 51-61
HI 28 16" - 18" 2615 50-150 - 483 554  61-75
HI 32 16" - 18" - 20" 2985 50-150 599 603  674 75-85
